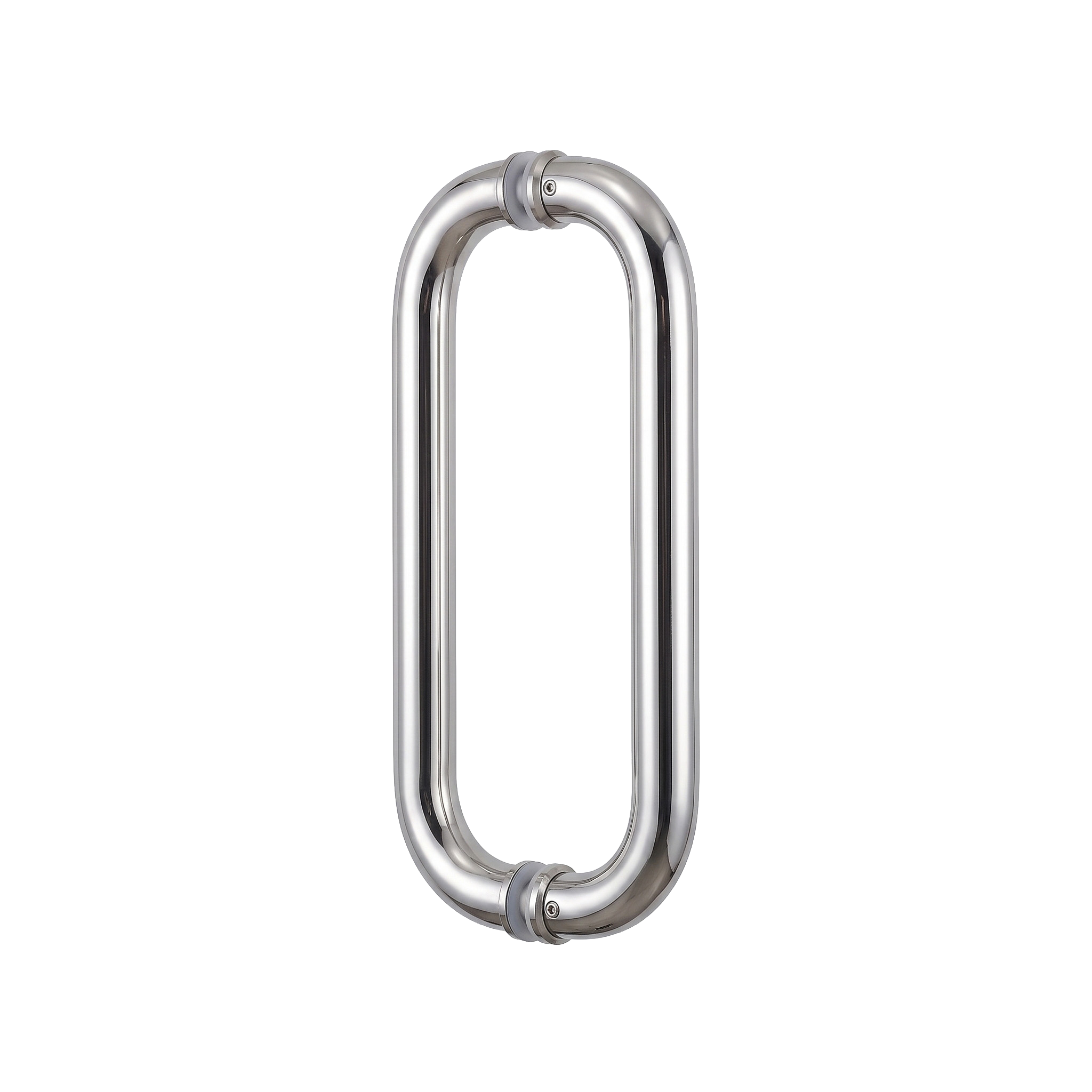

Dorman® D-Shape Tubular Glass Door Pull Handle (Back-to-Back) – Ø19 x 150 x 169 mm (SUS304, PSS)
The Dorman® D-Shape Tubular Pull Handle is a compact architectural back-to-back handle engineered for frameless glass shower doors, interior glass partitions, and lightweight display cases. Fabricated from premium SUS304 stainless steel with a high-luster polished stainless steel (PSS) mirror finish, it offers superior corrosion resistance in high-humidity environments paired with modern aesthetic appeal. Featuring a slender 19 mm outer tube diameter, a 150 mm (6-inch) center-to-center hole spacing, and an overall length of 169 mm, this handle provides an ergonomic grip for compact glass leaves. It installs back-to-back using heavy-duty threaded connecting bolts and protective transparent gaskets to safeguard glass panels against direct metal contact and stress fractures.
Technical details
- BrandDorman®
- Item CodeDM-O150P
- Barcode100102130
- Product TypeD-Shape Tubular Pull Handle (Back-to-Back Pair)
- MaterialPremium Stainless Steel SUS304 (High Corrosion Resistance)
- FinishPolished Stainless Steel (PSS / Bright Mirror Finish)
- Tube DiameterØ 19 mm
- Hole-to-Hole Center Distance (CC)150 mm (6")
- Overall Length169 mm
- Tube Wall Thickness0.8 mm
- Glass Thickness Compatibility8 mm to 12 mm tempered glass (adaptable to wooden/metal doors with extended screws)
- Mounting TypeDouble-sided back-to-back installation with internal hex grub screws and threaded through-bolts
- Branding / MarkingPrecision laser-etched Dorman® logo and SUS304 grade mark on standoff leg
- Inner PackagingIndividual branded color box
- Master Carton PackagingHeavy-duty brown master carton with black logo
- Country of OriginChina
Description
The Dorman® DM-O150P tubular pull handle brings functional ergonomics and refined architectural styling to compact glass panels and interior door systems. Constructed with premium SUS304 stainless steel, it is engineered to withstand routine daily commercial and residential operation while offering superior defense against rust, moisture, surface tarnishing, and wear, making it an excellent choice for shower enclosures and internal glass doors. The curved D-profile provides continuous structural rigidity across the entire span, eliminating flex during door operation. Each pair includes heavy-duty internal mounting hardware and non-aging protective washers, ensuring a firm, rattle-free installation on frameless glass panels without subjecting the glass cutouts to point-load stress.
Spec & Technical Data
Engineered to precise architectural standards, the DM-O150P features a 19 mm outer tube diameter and a 0.8 mm wall thickness, delivering optimum balance between structural strength and weight efficiency for compact installations. The handle requires two standard glass prep holes set at a 150 mm center-to-center dimension, with an overall length of 169 mm. Its polished stainless steel (PSS) mirror surface undergoes multi-stage mechanical buffing for a brilliant finish and easy cleaning in damp environments. The handle legs feature precision laser-etched Dorman® branding along with the SUS304 material grade, and mount via concealed hex grub screws, ensuring a clean, streamlined architectural finish on doors ranging from 8 mm to 12 mm in thickness.
