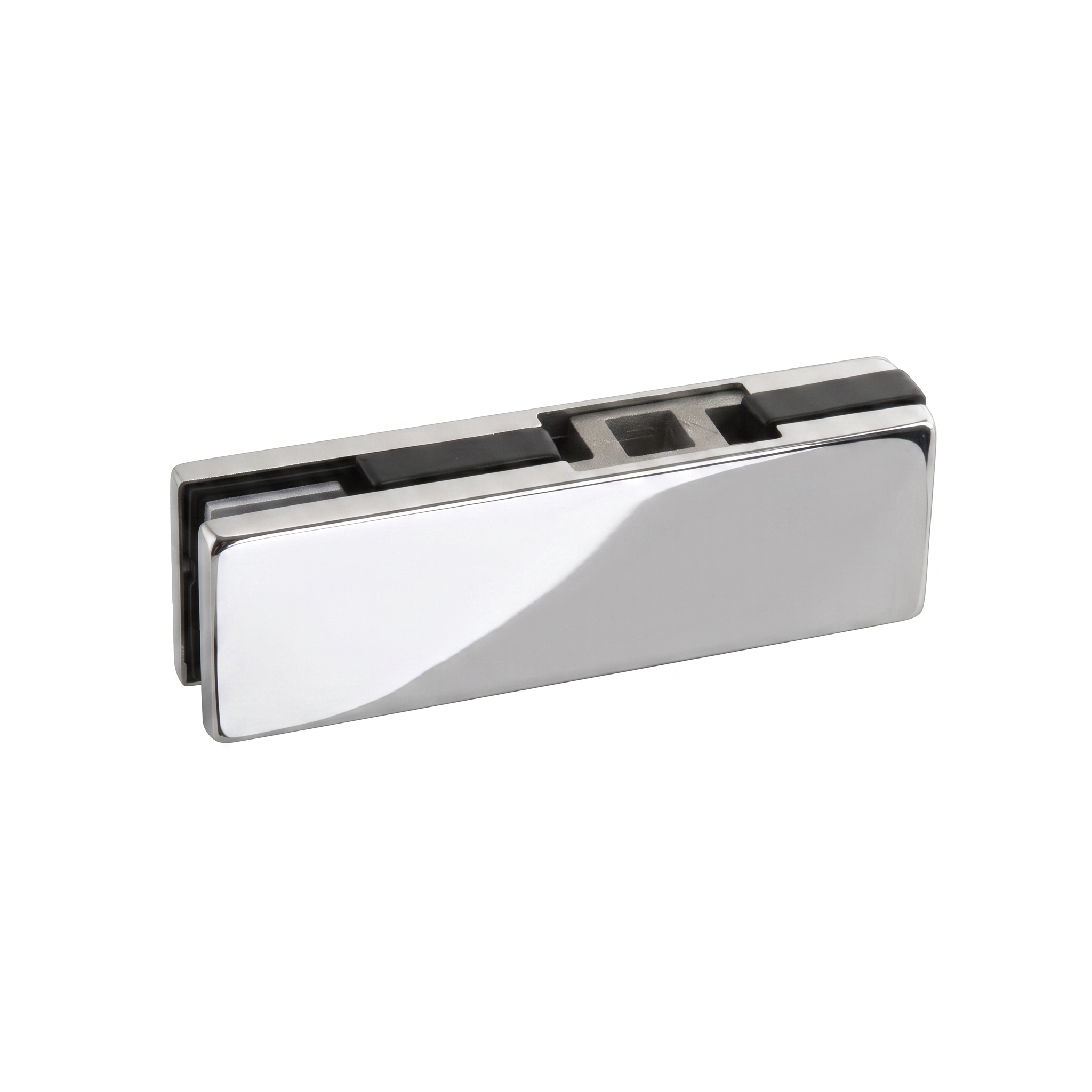

Dorman® DM-10M-4 Bottom Patch Fitting – SUS304 – Polished
The Dorman® DM-10M-4 Bottom Patch Fitting is a premium architectural hardware solution designed for frameless tempered glass doors. Compatible with Dorman® hydraulic floor springs using MAB-type square tapered spindles, it provides secure door support, precise alignment, and smooth, reliable operation. Manufactured from high-strength aluminum alloy with a SUS304 stainless steel cover and polished finish, it is ideal for commercial and residential glass door applications.
Technical details
- Product NameDorman® DM-10M-4 Bottom Patch Fitting
- BrandDorman®
- ModelDM-10M-4
- Product TypeBottom Patch Fitting
- MaterialHigh-Strength Aluminum Alloy with SUS304 Stainless Steel Cover
- FinishPolished (PSS)
- ApplicationFrameless Tempered Glass Doors
- Door TypeFrameless Pivot Glass Door
- Installation PositionBottom
- Compatible Floor SpringDorman® Hydraulic Floor Spring
- Compatible SpindleMAB Square Tapered Spindle
- Glass Thickness10 mm / 12 mm
- Operating SystemFloor Spring Pivot System
- Installation TypeGlass Mounted
- Corrosion ResistanceExcellent
- Weather ResistanceSuitable for Indoor & Sheltered Outdoor Applications
- PackingStandard Export Packing
- Country of OriginCN
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM-10M-4 Bottom Patch Fitting is engineered for professional frameless glass door installations requiring precision, durability, and long-term performance. Designed to connect the lower section of the glass door to Dorman® hydraulic floor spring systems, it ensures smooth pivot movement, accurate door alignment, and dependable structural support. Its polished SUS304 stainless steel cover enhances corrosion resistance while delivering a refined architectural appearance suitable for offices, hotels, shopping centres, retail stores, and other high-traffic environments.
Spec & Technical Data
The Dorman® DM-10M-4 Bottom Patch Fitting is manufactured from a high-strength aluminum alloy body combined with a polished SUS304 stainless steel cover for enhanced durability and corrosion resistance. Designed for frameless pivot glass doors with 10 mm and 12 mm tempered glass, it is compatible with Dorman® hydraulic floor springs using MAB square tapered spindles. The fitting is engineered to provide secure glass support, smooth operation, and reliable performance for demanding commercial and residential architectural applications.
