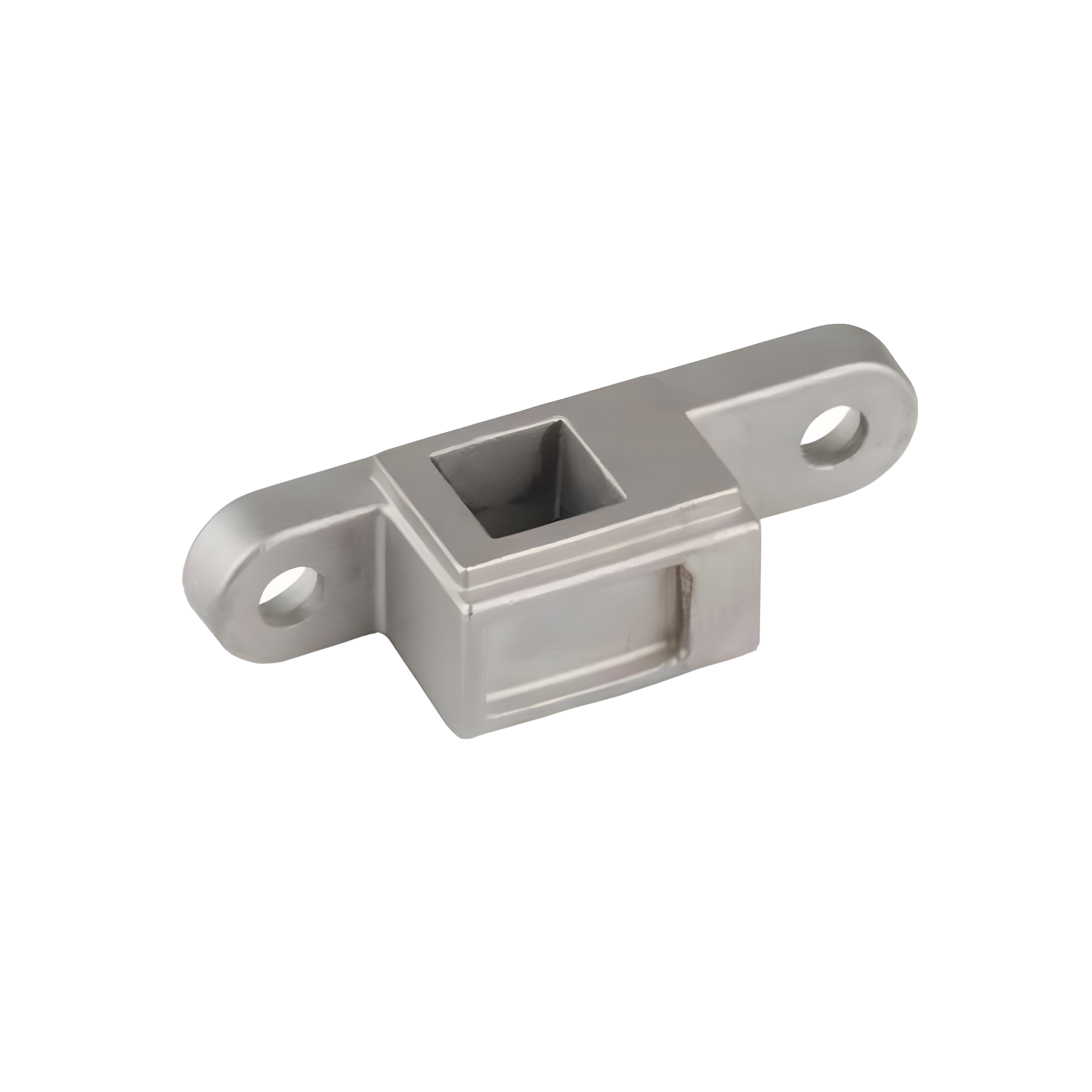

Dorman® DM-510M Bottom Patch Insert for Dorman® Hydraulic Floor Spring (MAB Type) – SUS304
The Dorman® DM-510M Bottom Patch Insert is a precision-engineered component designed for bottom patch fittings used with Dorman® hydraulic floor springs featuring MAB square tapered spindles. It provides secure spindle engagement, precise door alignment, and smooth pivot operation for frameless tempered glass doors. Manufactured from premium SUS304 stainless steel, it delivers exceptional durability, corrosion resistance, and dependable long-term performance in commercial and residential architectural applications.
Technical details
- Product NameDorman® DM-510M Bottom Patch Insert
- BrandDorman®
- ModelDM-510M
- Product TypeBottom Patch Insert
- MaterialSUS304 Stainless Steel
- FinishNatural Stainless Steel
- ApplicationFrameless Tempered Glass Doors
- Compatible Floor SpringDorman® Hydraulic Floor Spring
- Compatible Patch FittingBottom Patch Fitting
- FunctionConnects Bottom Patch Fitting to Floor Spring Spindle
- Spindle TypeMAB Square Tapered Spindle
- Glass Thickness10 mm / 12 mm
- Installation TypeBottom Patch Insert
- Corrosion ResistanceExcellent
- Weather ResistanceSuitable for Indoor & Sheltered Outdoor Applications
- MaintenanceMaintenance Free
- PackingStandard Export Packing
- Country of OriginCN
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM-510M Bottom Patch Insert is engineered to provide a secure and precise connection between the bottom patch fitting and Dorman® hydraulic floor springs using MAB square tapered spindles. Its precision-machined design ensures accurate spindle engagement, stable door alignment, and smooth pivot movement for reliable long-term operation. Manufactured from premium SUS304 stainless steel, it offers excellent corrosion resistance, high mechanical strength, and dependable performance for commercial and residential frameless glass door systems.
Spec & Technical Data
The Dorman® DM-510M Bottom Patch Insert is precision-machined from SUS304 stainless steel to ensure maximum dimensional accuracy, superior wear resistance, and reliable spindle engagement. Designed for Dorman® hydraulic floor spring systems using MAB square tapered spindles, it fits securely inside the bottom patch fitting to provide accurate door alignment, smooth pivot operation, and dependable long-term performance. Its robust construction makes it an ideal choice for demanding commercial and residential architectural glass door applications.
