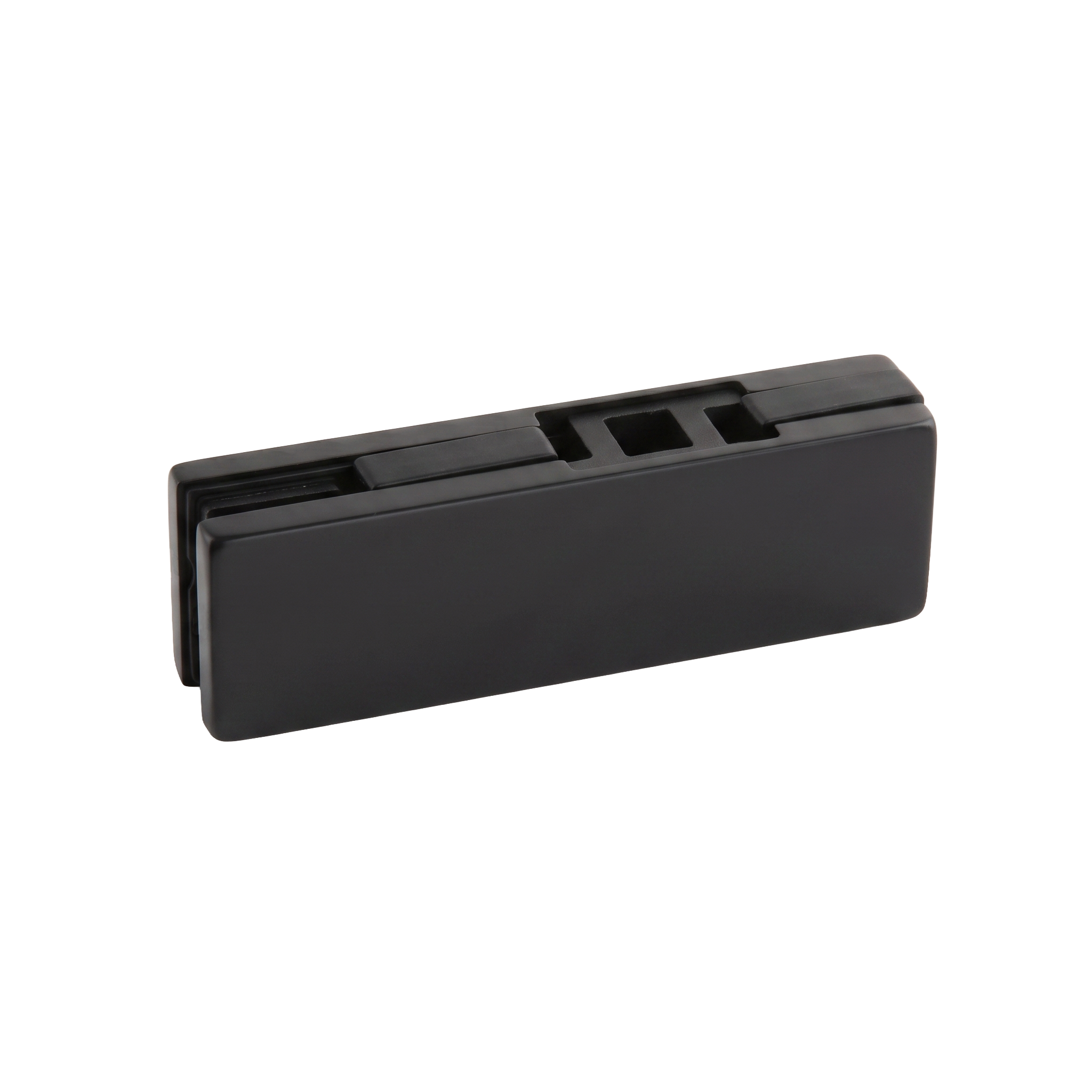

Dorman® DM10MB4 Bottom Patch Fitting – SUS304 – Matte Black
The Dorman® DM10MB4 Bottom Patch Fitting is a premium architectural hardware solution designed for frameless tempered glass doors. Compatible with Dorman® hydraulic floor springs using MAB-type square tapered spindles, it provides secure door support, precise alignment, and smooth, reliable operation. Manufactured from high-strength aluminum alloy with a SUS304 stainless steel cover in a durable matte black finish, it delivers a modern appearance while maintaining excellent corrosion resistance and long-term performance.
Technical details
- Product NameDorman® DM10MB4 Bottom Patch Fitting
- BrandDorman®
- ModelDM10MB4
- Product TypeBottom Patch Fitting
- MaterialHigh-Strength Aluminum Alloy with SUS304 Stainless Steel Cover
- FinishMatte Black (MB)
- ApplicationFrameless Tempered Glass Doors
- Door TypeFrameless Pivot Glass Door
- Installation PositionBottom
- Compatible Floor SpringDorman® Hydraulic Floor Spring
- Compatible SpindleMAB Square Tapered Spindle
- Glass Thickness10 mm / 12 mm
- Glass PreparationGlass Cut-out Required
- Installation TypeGlass Mounted
- Door OperationSingle Action / Double Action
- Corrosion ResistanceExcellent
- Weather ResistanceSuitable for Indoor & Sheltered Outdoor Applications
- MaintenanceLow Maintenance
- PackingStandard Export Packing
- Country of OriginCN
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM10MB4 Bottom Patch Fitting in Matte Black combines precision engineering with a contemporary architectural finish for frameless tempered glass door systems. Designed for use with Dorman® hydraulic floor springs and MAB-type square tapered spindles, it provides secure glass support, smooth pivot movement, and reliable long-term performance. The matte black SUS304 stainless steel cover enhances modern interior designs while offering excellent resistance to corrosion, wear, and daily use.
Spec & Technical Data
The Dorman® DM10MB4 Bottom Patch Fitting is manufactured from a high-strength aluminum alloy body with a matte black SUS304 stainless steel cover for enhanced durability and corrosion resistance. Designed for 10 mm and 12 mm frameless tempered glass doors, it is compatible with Dorman® hydraulic floor spring systems using MAB square tapered spindles. Precision manufacturing ensures accurate alignment, smooth operation, and dependable performance for demanding commercial and residential architectural applications.
